Equalizers are one of the most powerful and misunderstood tools on a pedalboard. Whether you play guitar or bass, an EQ pedal can sculpt your tone, cut feedback, boost for solos, or help your instrument sit better in a mix. But not all EQs work the same way. The two main types, graphic and parametric, approach frequency control from different angles, and choosing the right one depends on how you like to work and what you need to fix.
Browse our full EQ Pedals collection or visit the specs page for spec sheets and wiring guides.
Graphic EQ: Fixed Bands, Fast Hands
A graphic EQ divides the frequency spectrum into a fixed set of bands — typically 6, 7, or 10 — each centred on a specific frequency (e.g., 100 Hz, 200 Hz, 400 Hz, and so on). Each band has a slider or knob that boosts or cuts only at that fixed centre frequency. The layout gives you an instant visual picture of your EQ curve, which is where the name comes from.
Strengths of graphic EQ:
- Fast to dial in — the visual layout maps directly to the sound
- Simultaneous, independent control over multiple frequency regions
- Well-suited to broad tonal shaping: adding warmth, cutting mud, or adding presence and air
- Repeatable: you can photograph or note your settings and recall them reliably
- Works well for live use where fast adjustments between songs or rooms matter
Limitations: The fixed centre frequencies may not land exactly where your problem frequency sits. If your guitar has a harsh resonance at 3.2 kHz, a graphic EQ with bands at 3.2 kHz and 4 kHz can only approximate the cut — which can mean cutting too broad a range or not hitting the precise spot.

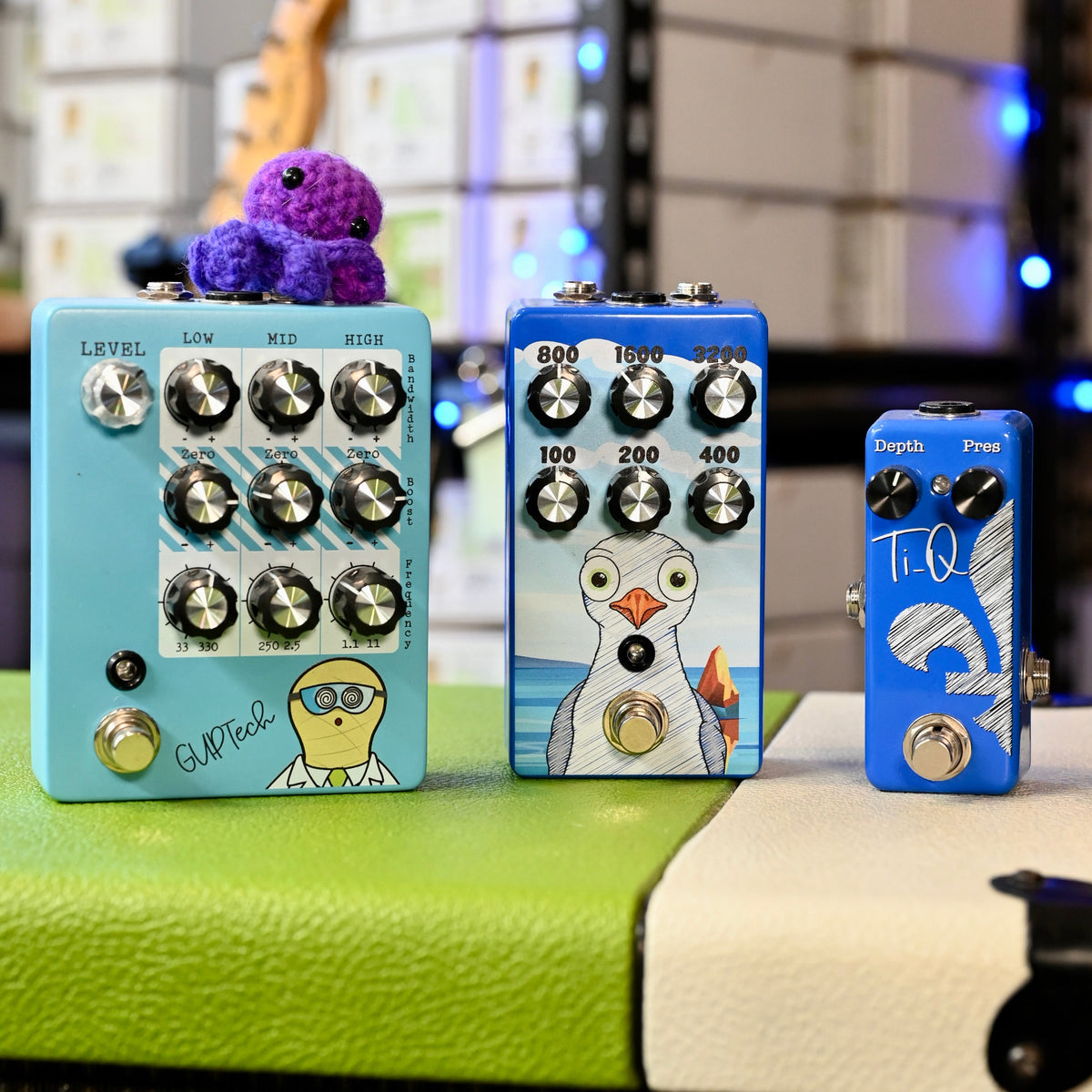

The IseaQ is our answer to this type of EQ. Compact, graphic (with knobs instead of sliders), you get total control over the tonal spectrum, for Bass, guitar, Hi-fi, anything.
The PdeQ Presence Depth Guitar EQ Pedal is a compact graphic-style EQ designed around the frequency ranges that matter most for electric guitar: it shapes the presence and depth characteristics of your tone without requiring you to dial in specific Hz values. It's a practical solution for players who want tonal control without menu-diving.
Parametric EQ: Surgical Precision
A parametric EQ lets you control three variables per band: the centre frequency (which frequency you're targeting), the gain (how much you boost or cut), and in a fully parametric design the bandwidth or Q (how wide or narrow the affected range is). This combination gives you far greater precision than a graphic EQ.
Strengths of parametric EQ:
- Pinpoint control: you can find and surgically cut or boost a very specific frequency
- Q control lets you make a narrow notch cut (for feedback or a resonant peak) or a broad shelf (for overall warmth or brightness)
- Fewer bands can accomplish more, because each band goes exactly where you need it
- Highly effective for studio recording, in-ear monitor mixes, and technical live rigs where precision matters
Limitations: More parameters to manage means a steeper learning curve. Setting up a parametric EQ takes more time and a trained ear (or a spectrum analyser). For players who just want to quickly brighten their tone, a graphic EQ is often more practical.
The pPTSD 3-Band Parametric EQ Guitar Pedal puts three fully parametric bands on your board, each with independent frequency, gain, and Q controls. Three bands is typically enough to address a low-end mud problem, a mid-range honk, and a high-frequency harshness simultaneously — all with the surgical accuracy that a fixed-band graphic cannot provide.
Which Should You Choose?
Choose a graphic EQ if: you want a fast, intuitive way to shape your overall tone on stage or in rehearsal, you need to adjust multiple frequency regions at once, or you're new to EQ and want something approachable.
Choose a parametric EQ if: you have a specific frequency problem to fix (feedback, a resonant peak, room mode), you record or play in in-ear monitor rigs where precision counts, or you want the flexibility to make both broad and surgical adjustments with fewer bands.
Many players end up using both: a graphic EQ for overall tone-shaping at the front of the chain and a parametric EQ to solve specific problems further down.
See all available options in the EQ Pedals collection.
