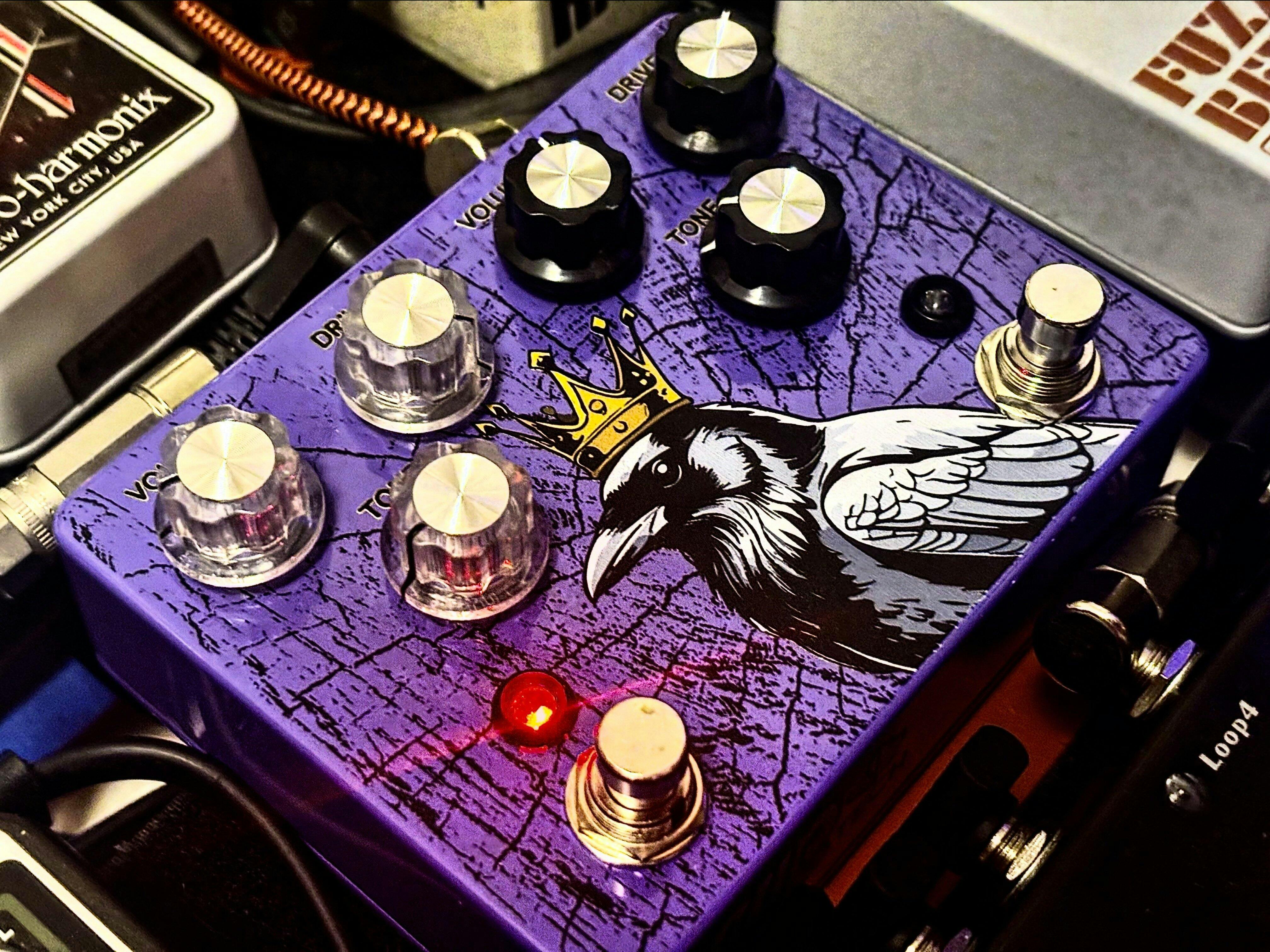

This is our dual Overdrive based on the AnalogMan version of the Blues Breaker, the King of Tone.
This pedal have an onboard 18VDC charge pump (no need to wire it to a 18VDC outlet anymore), dual independent overdrive circuit with internal switch for Hard and Soft clipping of each channels. Internal trimpots for the presence control of each channels.
Enclosure is a 1590BB. Currently wired with 1n914, BA283 diodes and JRC4580 chip.
Power consumption : 21mA
Voltage : 9Vdc Center Negative ONLY. Using more than 9V will blow some capacitors.
