2022-03-19 Update : The Voodoo Doll V2 is now available. Only in green for now, we tweaked the EQ circuit with only a Tone knob now. The other "upgrades" are simply inside the box and won't change the tone, it's just easier for us to assemble.

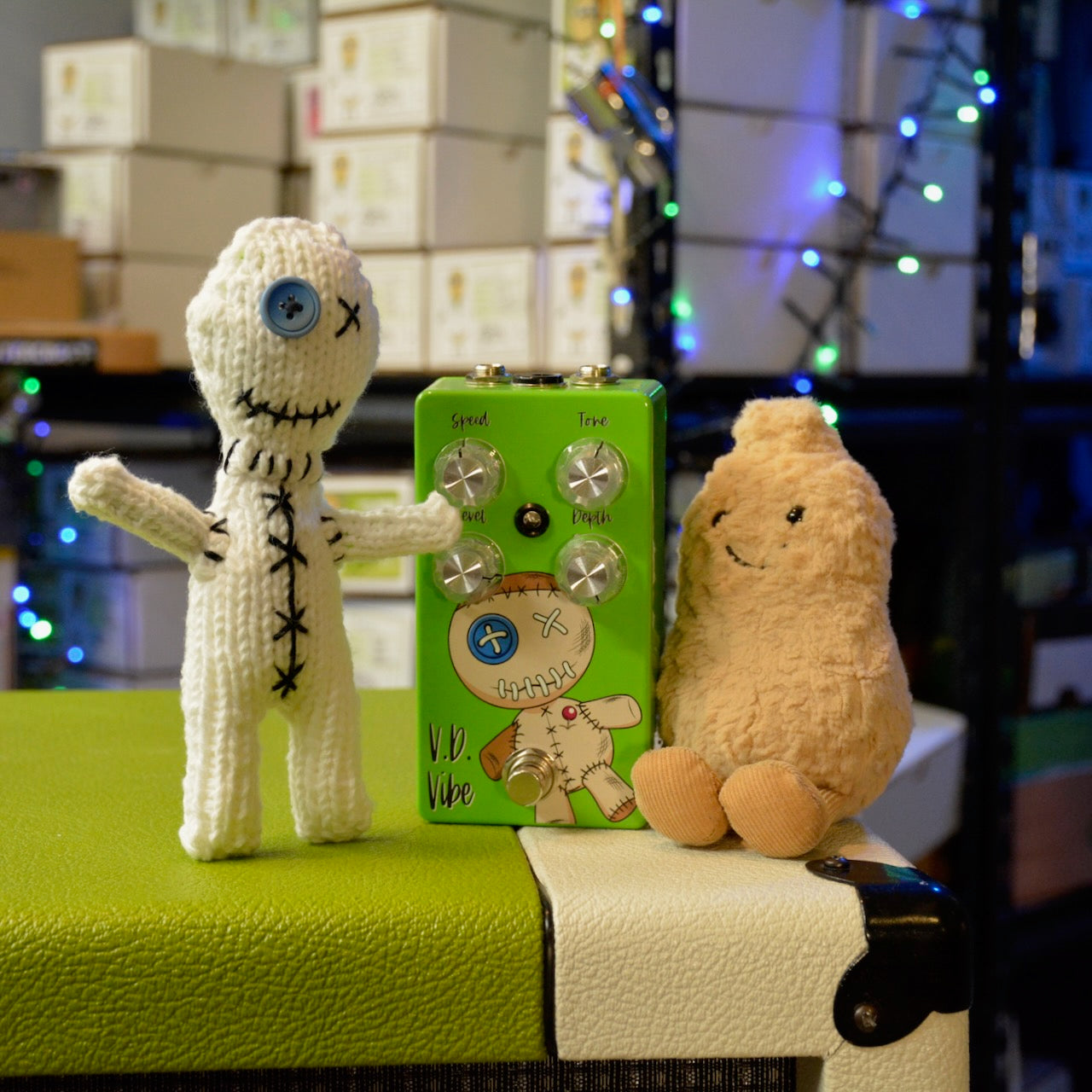

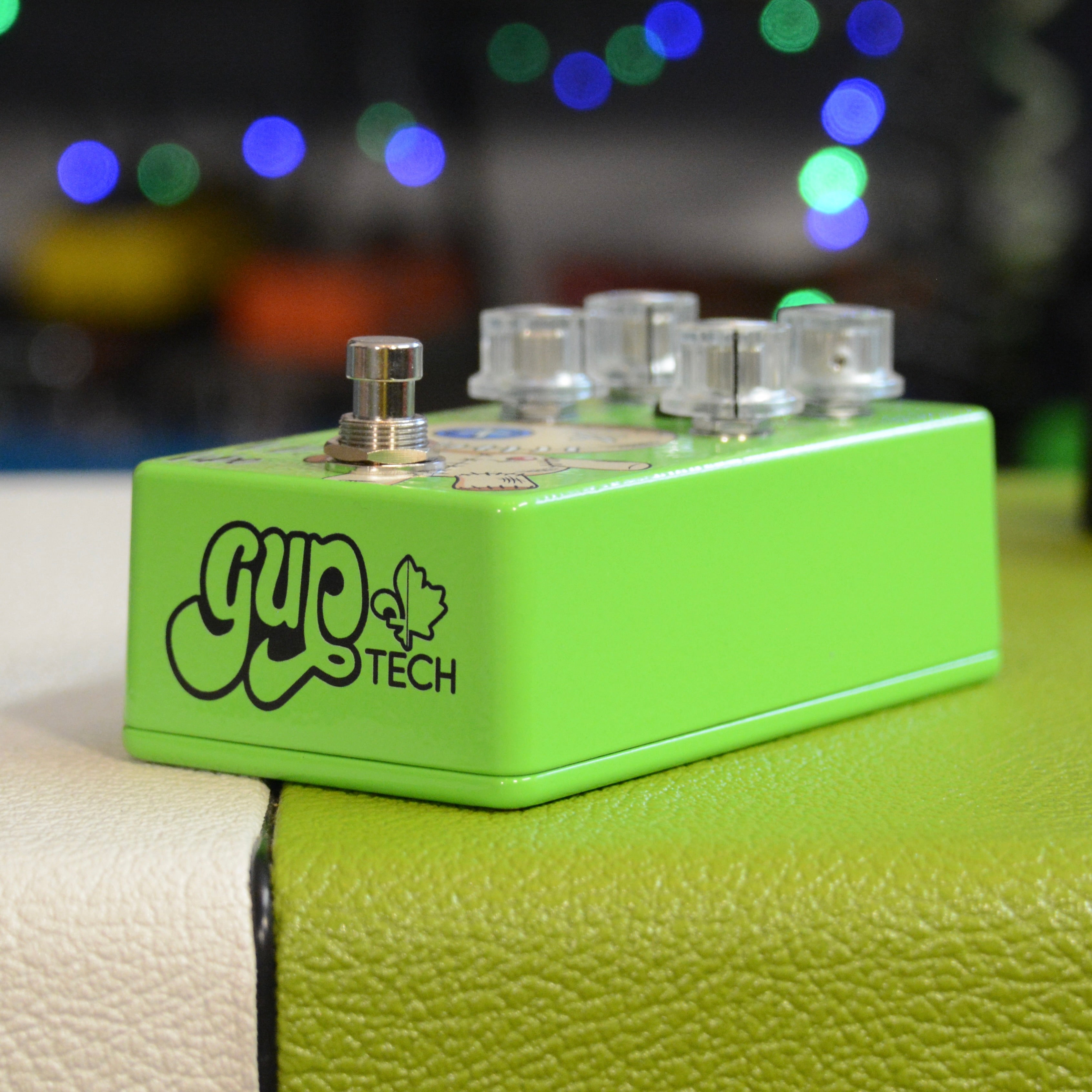

Here's our VD Vibe unit. This little voodoo doll is a real analog photocell Vibe Machine. With complete control over Depth, Speed, level and also Low/High frequency.
Design note : Our VD Vibe is named with the initials of one of our dear friend and also long time GUP Tech follower Vincent Desautels. Vincent is a local radio host and is the voice of our region for such a long time. Follow him here on his socials : Instagram. Also, the Voodoo can be late related to Hendrix ;)
Power consumption : Around 100mA (Did we say that it's fully analog Photocell/light ?) We highly recommend using an isolated power supply since the high power draw can cause some weird squealing with other pedal circuits.
Voltage : 9Vdc center negative only. Anything higher will blow some stuffs.
Demo of the prototype unit :
