GUPtech
Widow 8-Mode FX
Style:Yellow Modul-Eight
Quantity:
Pickup available at GUP Tech shop
Usually ready in 24 hours
Widow 8-Mode FX
Yellow Modul-Eight
GUP Tech shop
Pickup available, usually ready in 24 hours
947 Rue de la Moisson
Laterrière QC G7N 0C2
Canada
Based on the FV-1 time effect chip, this 8-mode pedal can combine whatever you want, reverb, phaser, chorus, etc.
Choose between two sets of effects :

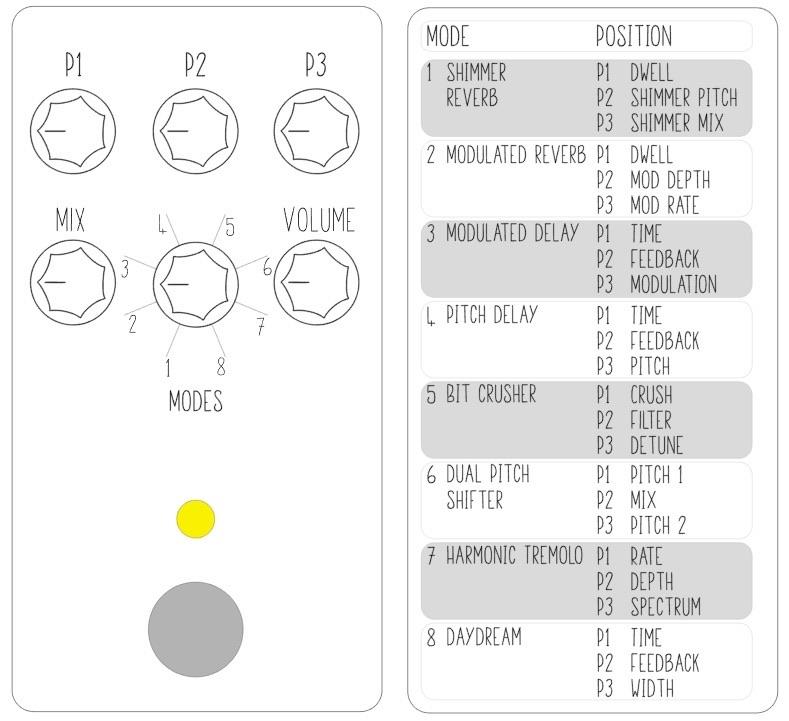

VARIOUS (8 Various Effects) :
- Shimmer Reverb
- Modulated Reverb
- Modulated Delay
- Pitch Delay
- Bit Crusher
- Dual Pitch Shifter
- Harmonic Tremolo
- Daydream Delay

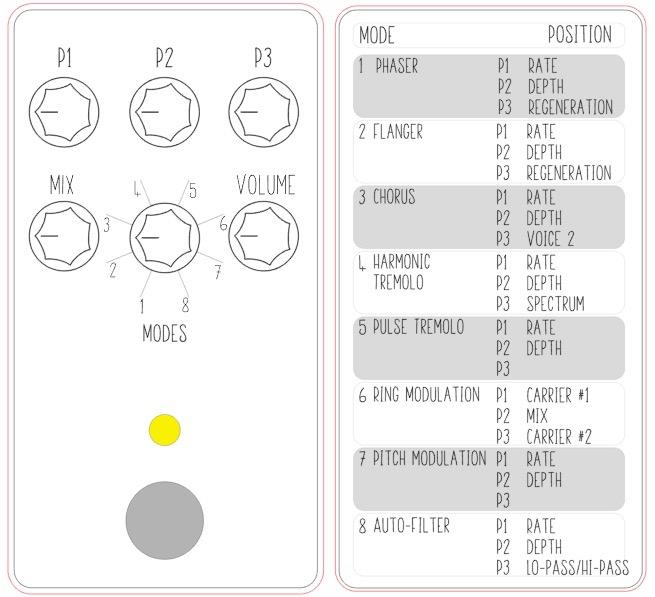

MODUL-Eight :
- Phaser
- Flanger
- Chorus
- Harmonic Tremolo
- Pulse Tremolo
- Ring Modulation
- Pitch Modulation
- Auto-Filter
Each preset is controlled with three parameters (three top knobs). Mix knob adjust how much dry signal is included and Volume knob control the total output (+6DB of boost max).
Power consumption : 65mA
Voltage : 9 Vdc Center negative
Headroom : 3.28dBu (3.2Vpp) at 1kHZ
